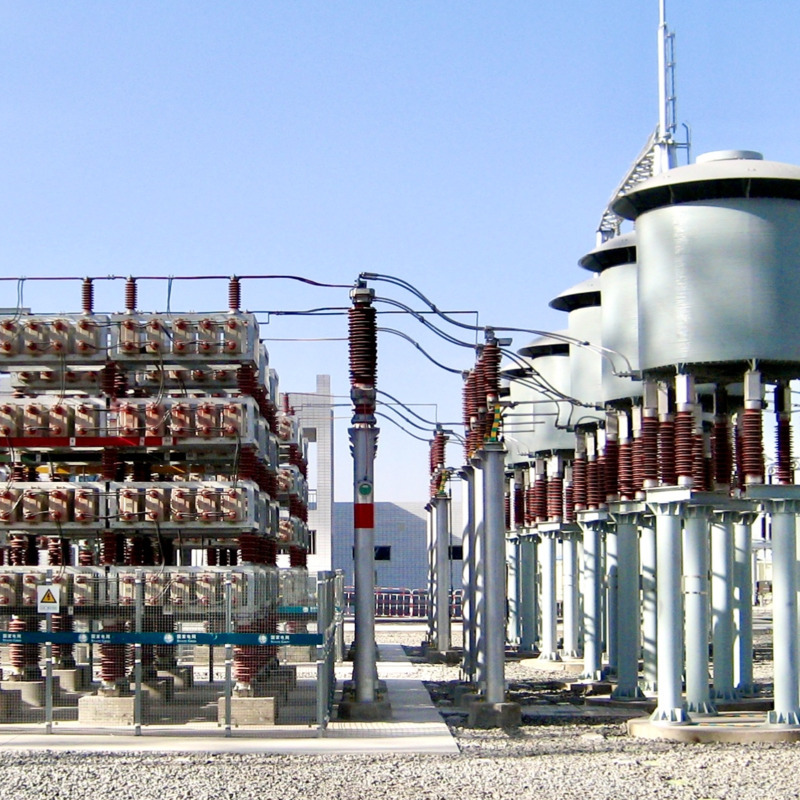

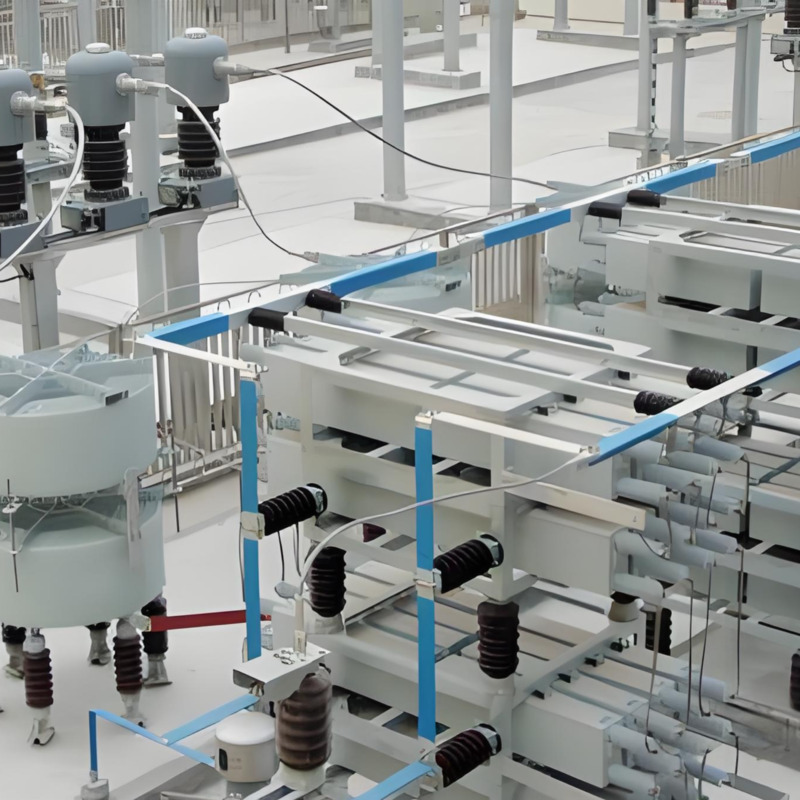

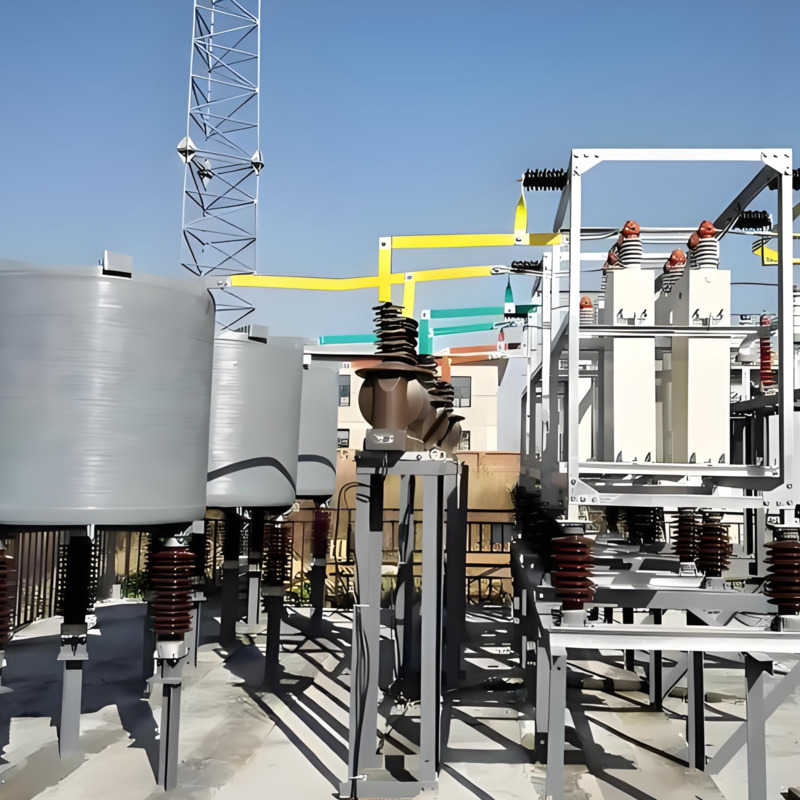

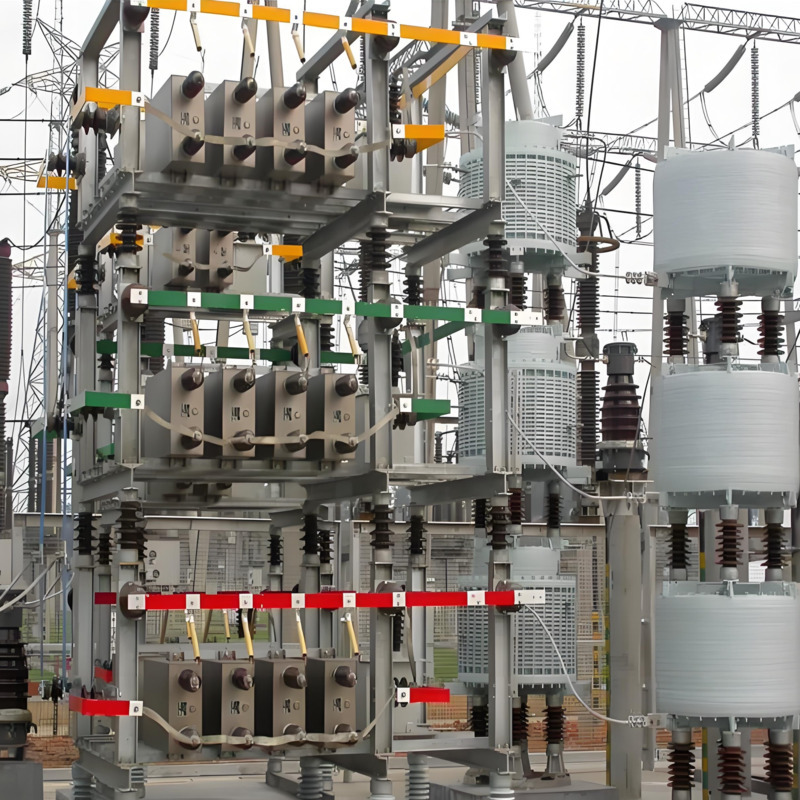

Power Capacitor Bank

Power Capacitor Bank

A Power Capacitor Bank is a vital device in electrical systems, widely used to improve power factor, enhance voltage stability, and increase the efficiency of energy transmission. By supplying reactive power compensation, a Power Capacitor Bank reduces system losses and ensures reliable power delivery in both industrial and utility networks.

Function of Power Capacitor Bank

The main role of a Power Capacitor Bank is to provide capacitive reactive power to the grid or facility. Many electrical loads, such as motors, transformers, and inductive equipment, consume reactive power, which decreases efficiency and leads to higher energy costs. A Power Capacitor Bank offsets this demand by injecting capacitive reactive power, thereby improving the power factor and reducing strain on the electrical system.

Design and Components of Power Capacitor Bank

A Power Capacitor Bank is usually composed of multiple capacitor units connected in series and parallel combinations to achieve the desired voltage and kvar rating. In addition, a Power Capacitor Bank may include:

·        Switching Devices to connect or disconnect the bank as needed.

·        Protective Relays and Fuses to ensure safe and reliable operation.

·        Series Reactors to limit inrush currents and reduce harmonic effects.

Applications of Power Capacitor Bank

1.  Industrial Facilities: A Power Capacitor Bank helps factories reduce electricity bills by correcting poor power factor.

2.  Utilities and Substations: A Power Capacitor Bank stabilizes voltage profiles and improves overall grid efficiency.

3.  Commercial Buildings: A Power Capacitor Bank ensures reliable operation of HVAC systems, elevators, and lighting networks.

4.  Renewable Energy Integration: A Power Capacitor Bank provides necessary reactive power support for wind and solar farms.

Benefits of Power Capacitor Bank

·        Improves power factor and lowers electricity costs.

·        Enhances voltage stability in distribution and transmission networks.

·        Reduces transmission and distribution losses.

·        Extends equipment lifespan by minimizing stress caused by poor power quality.

Conclusion

The Power Capacitor Bank is a critical solution for reactive power management in both industrial and utility applications. By compensating reactive power, the Power Capacitor Bank improves efficiency, stabilizes voltage, and reduces costs. As power systems face growing demands and renewable integration, the Power Capacitor Bank will remain an indispensable technology for ensuring reliable and efficient energy supply.

Ordering Notice:

1. Please provide detailed parameters of the product.

2. Please provide us with as much product related information as possible regarding the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, so that we can provide you with a faster and more accurate quotation.

3. Please provide the product specifications, product drawings, product nameplates, product photos, etc. that you need to order, send email to: shanghaizhiyou@gmail.com We will reply as soon as we receive the email.

4. You can also quickly contact our sales manager Yang through the following contact information: WeChat：+ 86 13122066665 or WhatsApp:+ 86 189 3091 2328.

We are willing to serve you with our professionalism, sincerity, and integrity.
